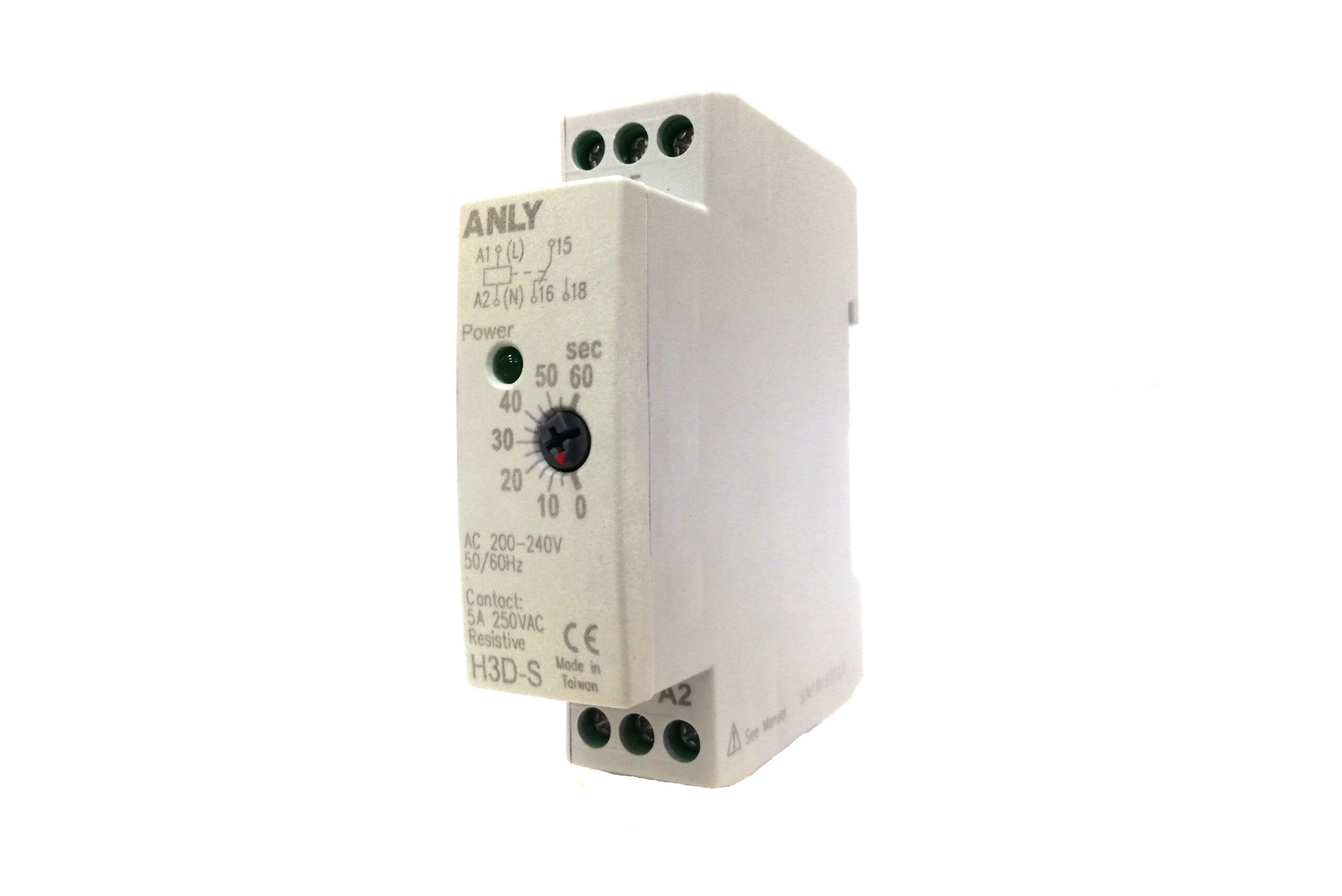

H3D-S On Delay Timer 200-240VAC Range: 60sec Anly

60Seconds On-Delay Timer 250VAC 5A

Make / Brand: Anly Electronics

Country of Origin: Taiwan



Download Catalogue

Shop Online

Description

  • Function: On Delay Timer
  • Operating Voltage: AC 200-240V
  • Allowable Operating Voltage Range: 90-110% of rated operating voltage
  • Rated Frequency: 50/60Hz
  • Contact Rating: 250VAC 5A (resistive load)
  • Reset Time: MAX 0.1s
  • Power Consumption: Approx. 7VA
  • Time Range: 60 Seconds
  • Output Contact: 1C
  • Standards: UL Listed, CE Certified
  • Dimension: (H)71.2mm x (W)17.5mm x (D)60mm
