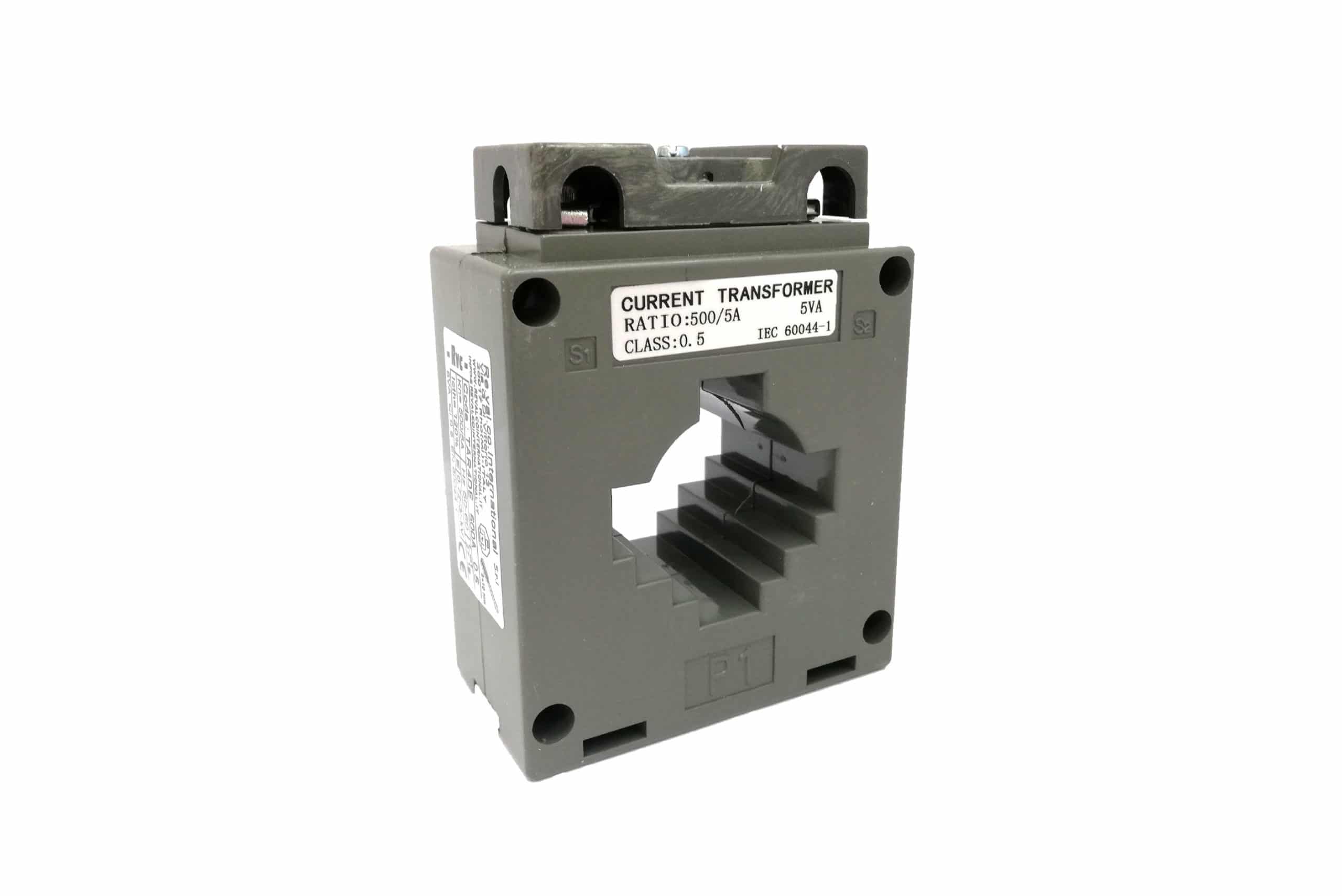

TAR4DE 500A – 600A Current Transformer – CT Revalco

CT – Current Transformer – Low Voltage – Busbarr 40x10mm

Make/Brand: Revalco

Country of Origin: Italy



Download Catalogue

Description

The CT makes it possible to measure high current values, and indicate, these using instruments of much lower rating.

  • Primary Current:
    * 500A – Cable Max: 30mm
    * 600A – Cable Max: 32mm
  • Horizontal Bar: 40 x 10 mm
  • Vertical Bar: 40 x 10 mm
  • Secondary Current: 5A AC
  • Accuracy Class: 0.5
  • Frequency: 50-60Hz
  • Dimensions: 98H x 75W x 59D mm
  • Approval: CE Mark
  • Weight: 395g
