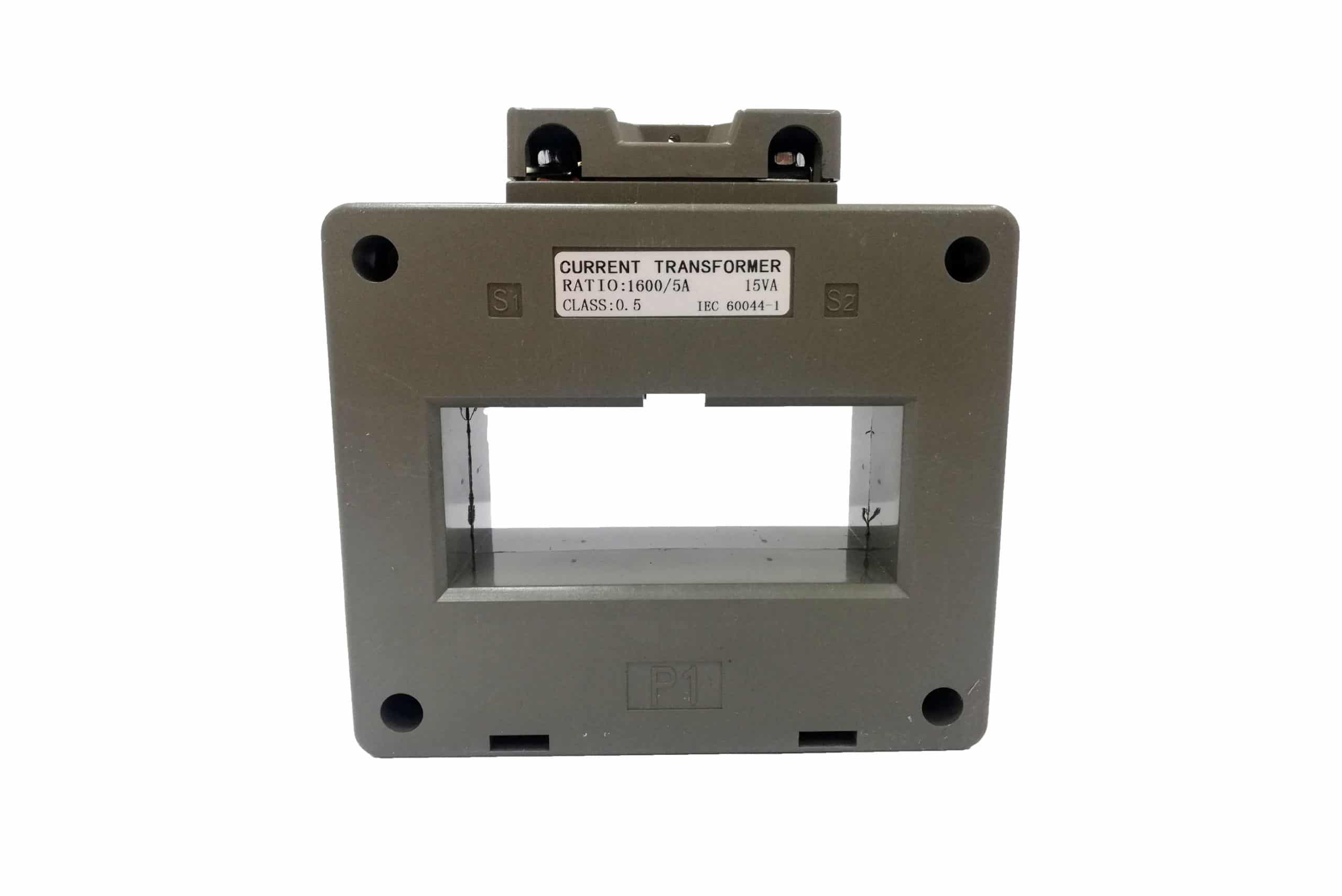

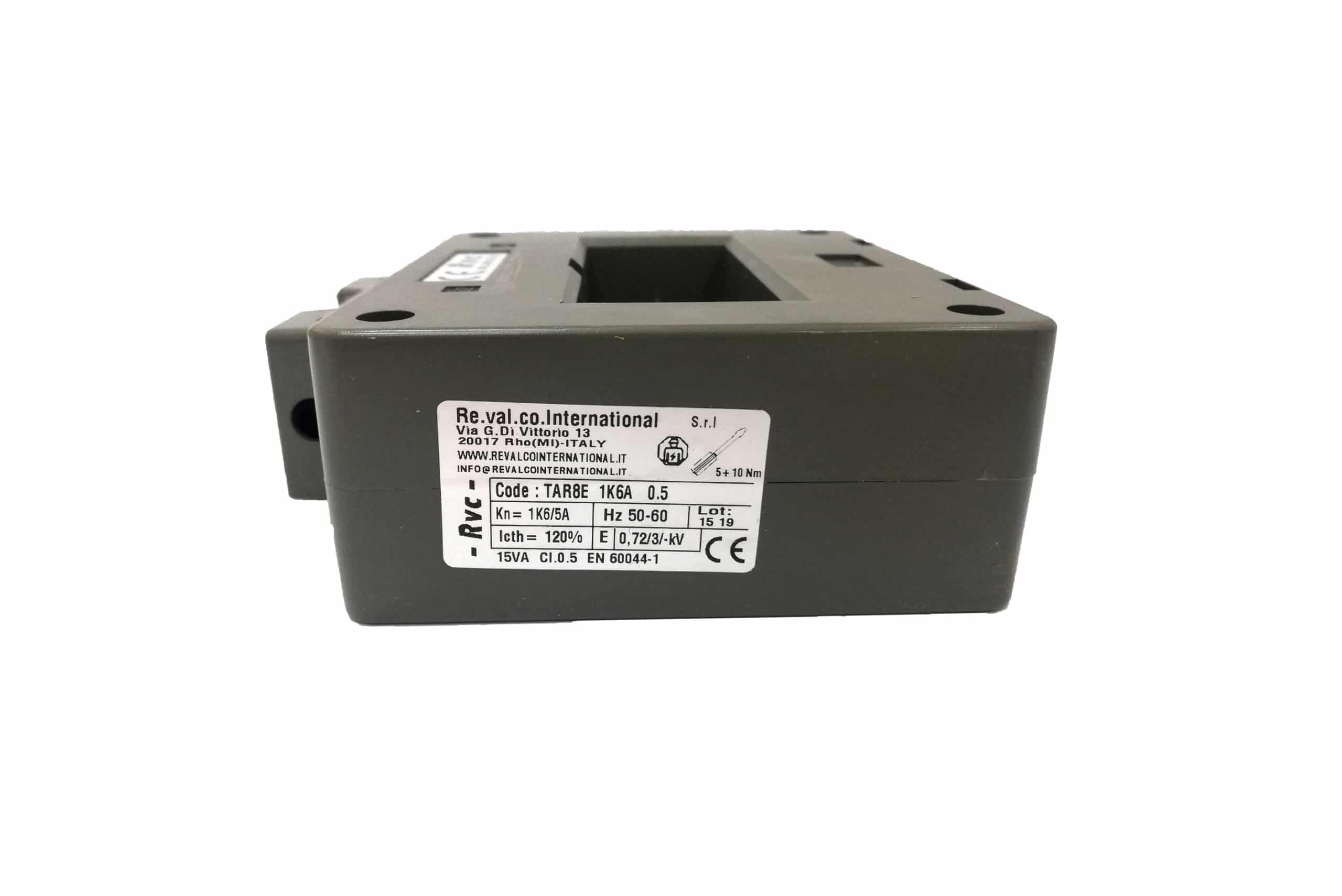

Current Transformer (CT) 1600A Current: 5A Series: TAR8E Revalco

Current Transformer 1600/5A – Busbarr 80x30mm

Make/Brand: Revalco

Country of Origin: Italy



Download Catalogue

Shop Online

Description

The current transformer – CT makes it possible to measure high current values, and indicate, these using instruments of much lower rating.

  • Primary Current:
    * 0 – 1600A AC – Cable Max: 30mm
  • Vertical Bar: 80×30 / 30×80 mm
  • Burden: 15VA
  • Secondary Current: 0 – 5A AC
  • Accuracy Class: 0.5
  • Frequency: 50-60Hz
  • Dimensions: 120H x 122W x 45D mm
  • Approval: CE Mark
  • Weight: 710g
