Description

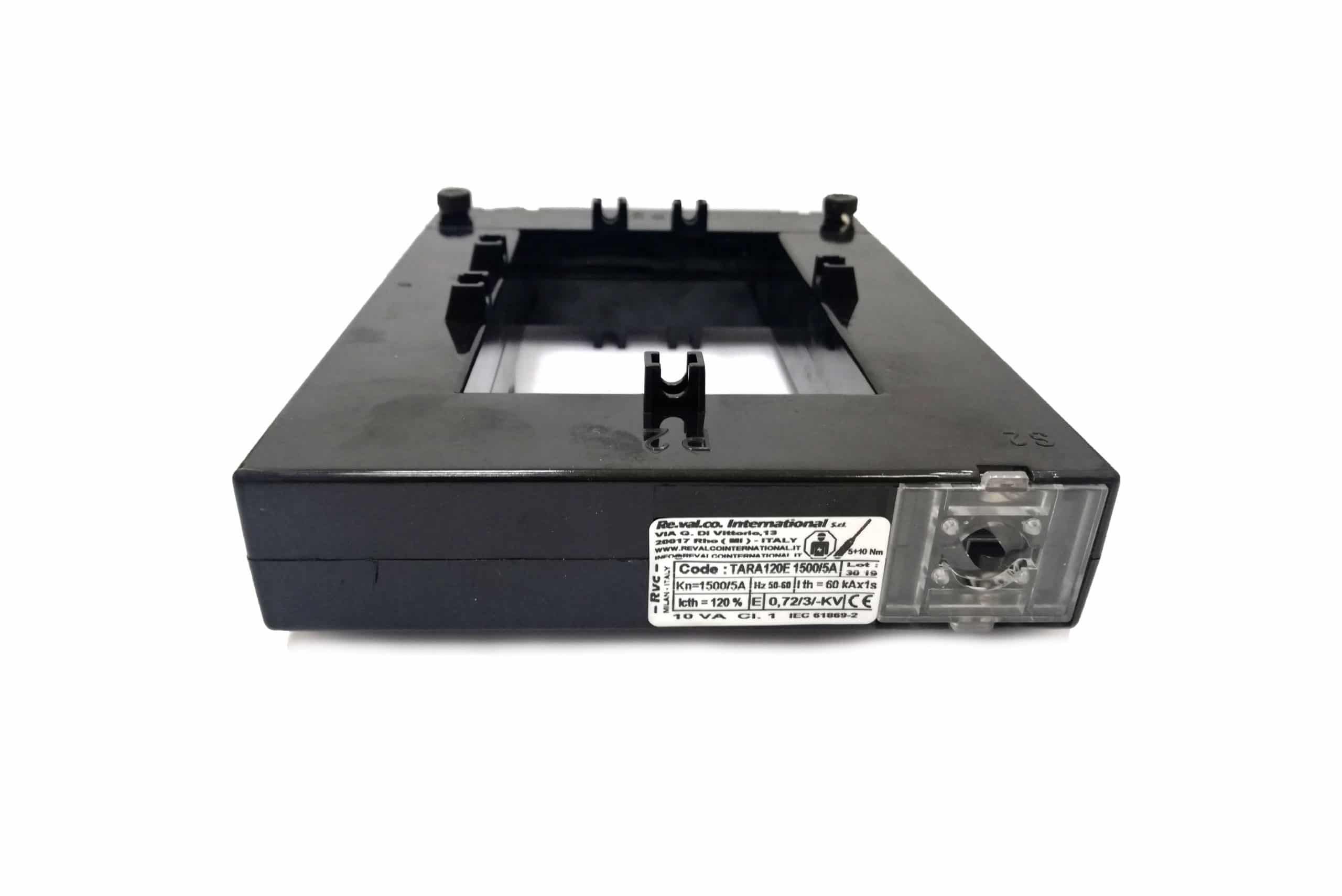

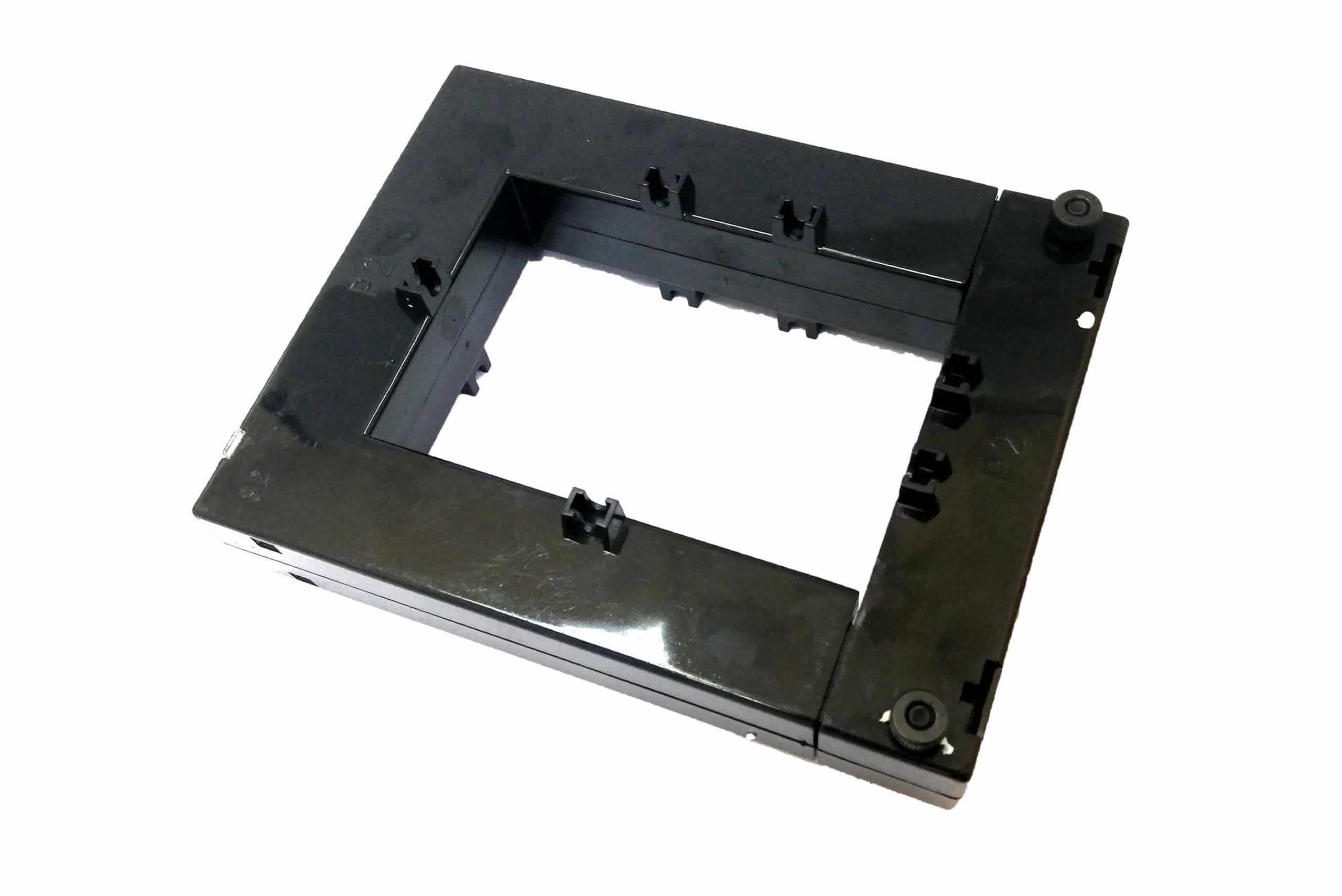

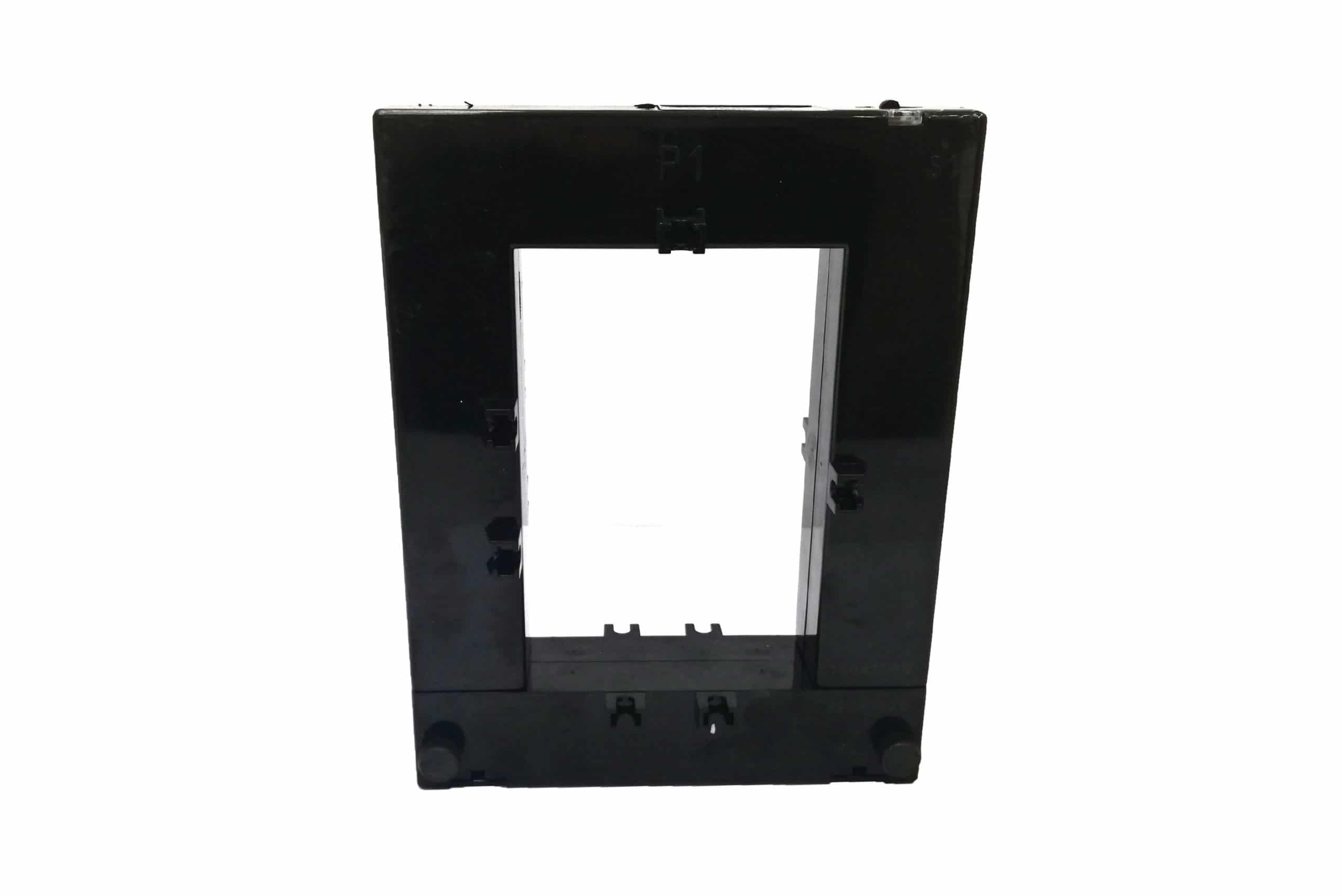

Split Core Current Transformer

The CT makes it possible to measure high current values, and indicate, these using instruments of much lower rating.

• Primary Current:
  * 1500A AC – Cable Max: 80mm
• Burden: 10VA
• Vertical Bar: 80 x 120 mm
• Secondary Current:  5A AC
• Accuracy Class: 1
• Frequency: 50-60Hz
• Dimensions: 185H x 144W x 32D mm
• Approval: CE Mark
• Weight: 1,327g
