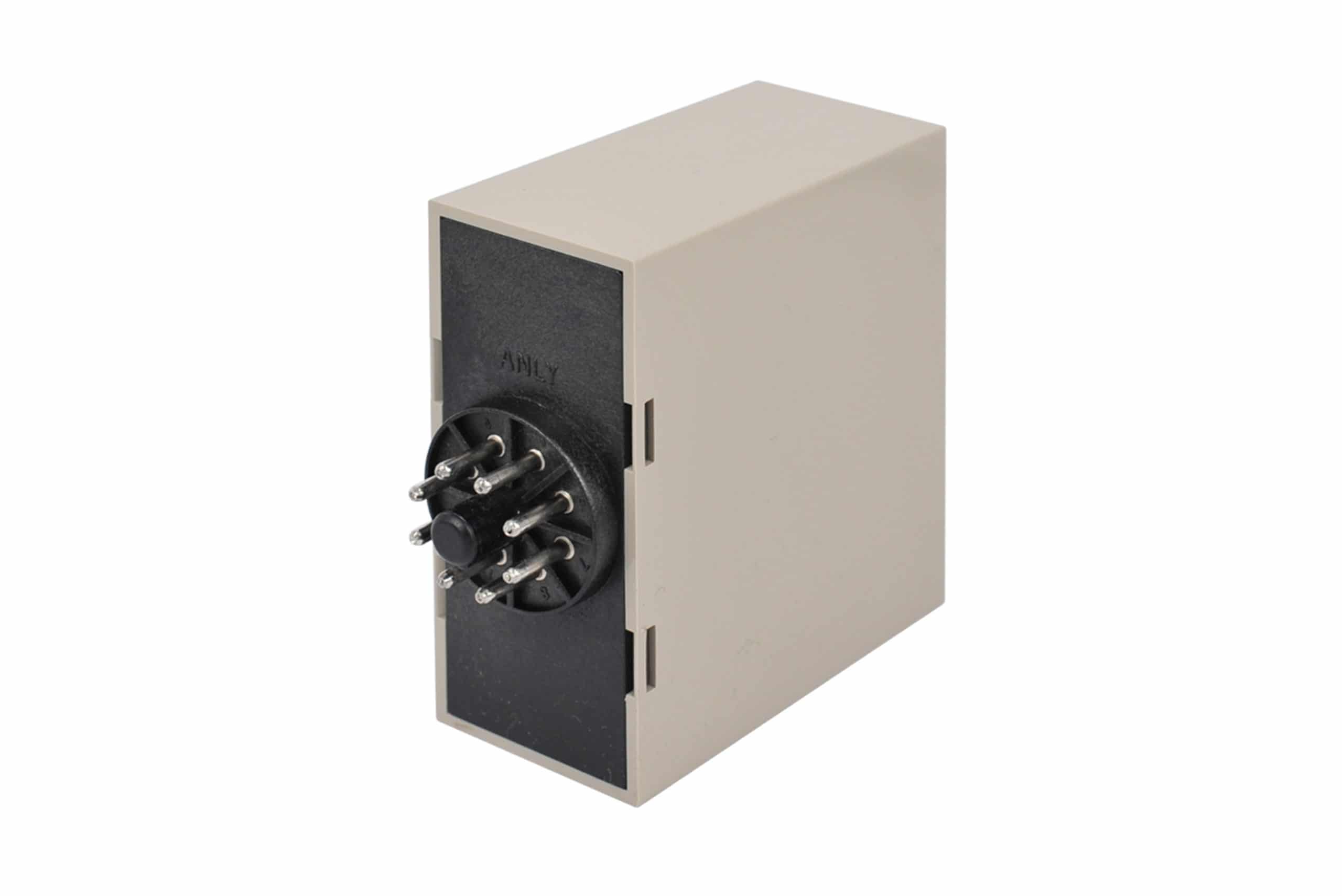

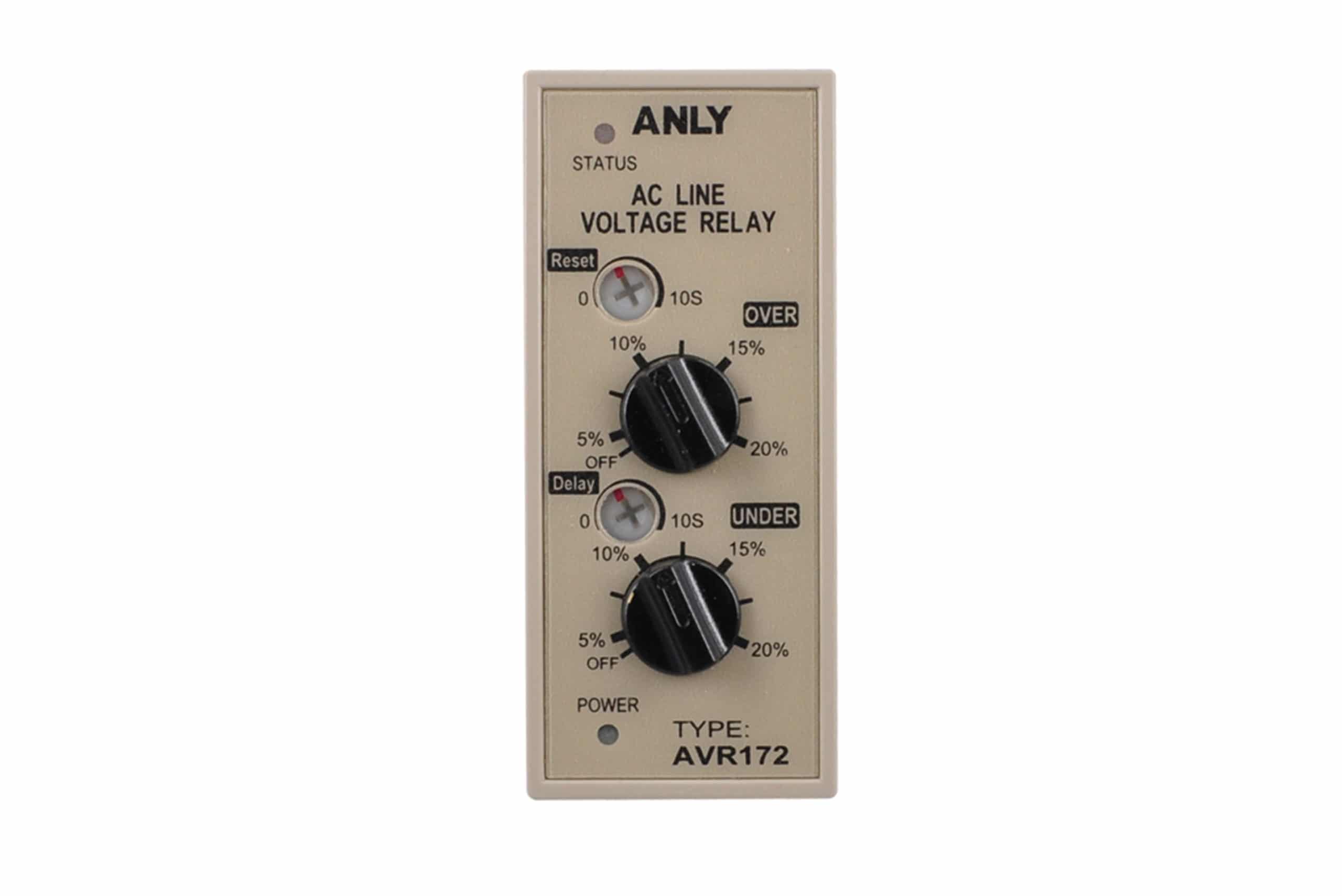

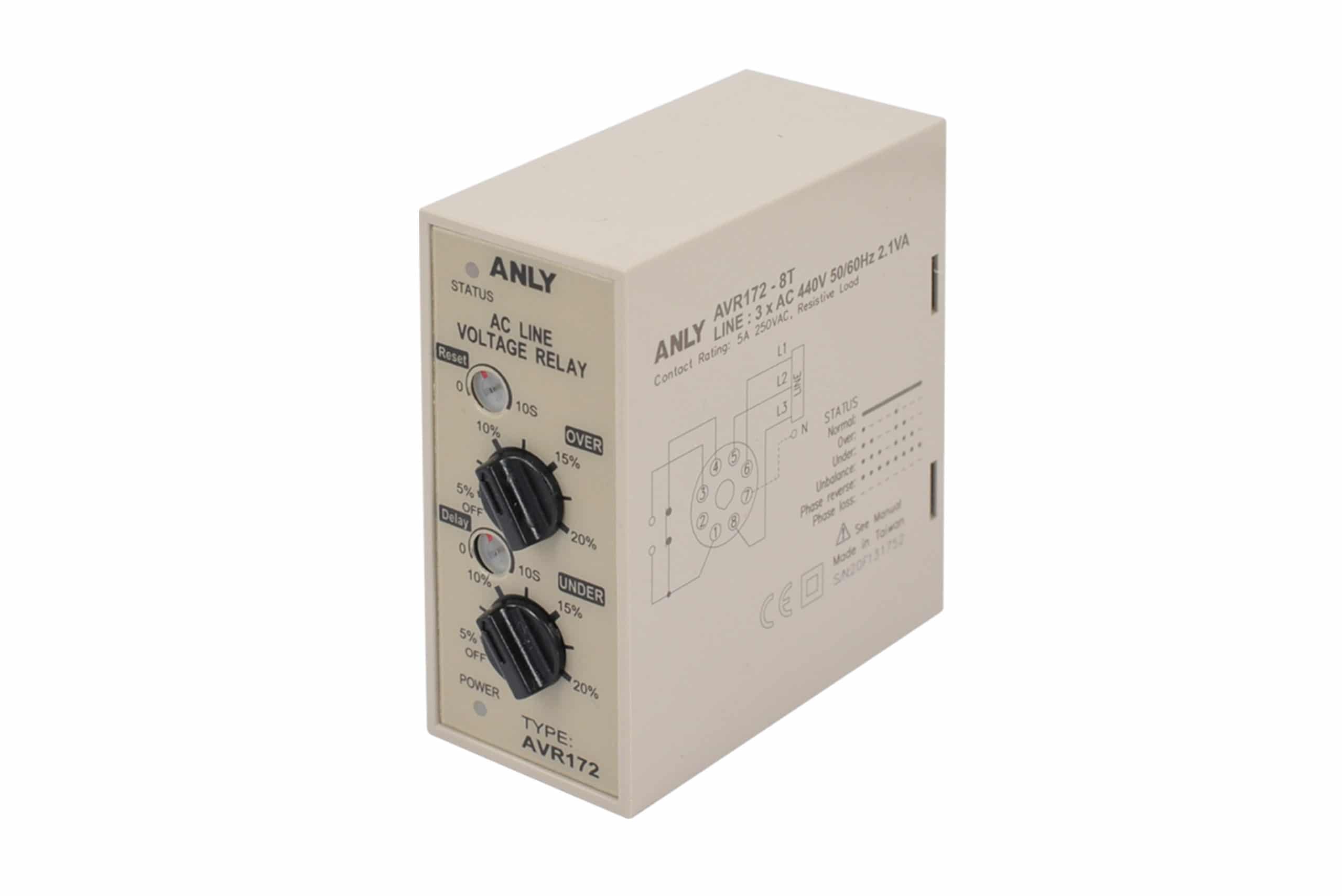

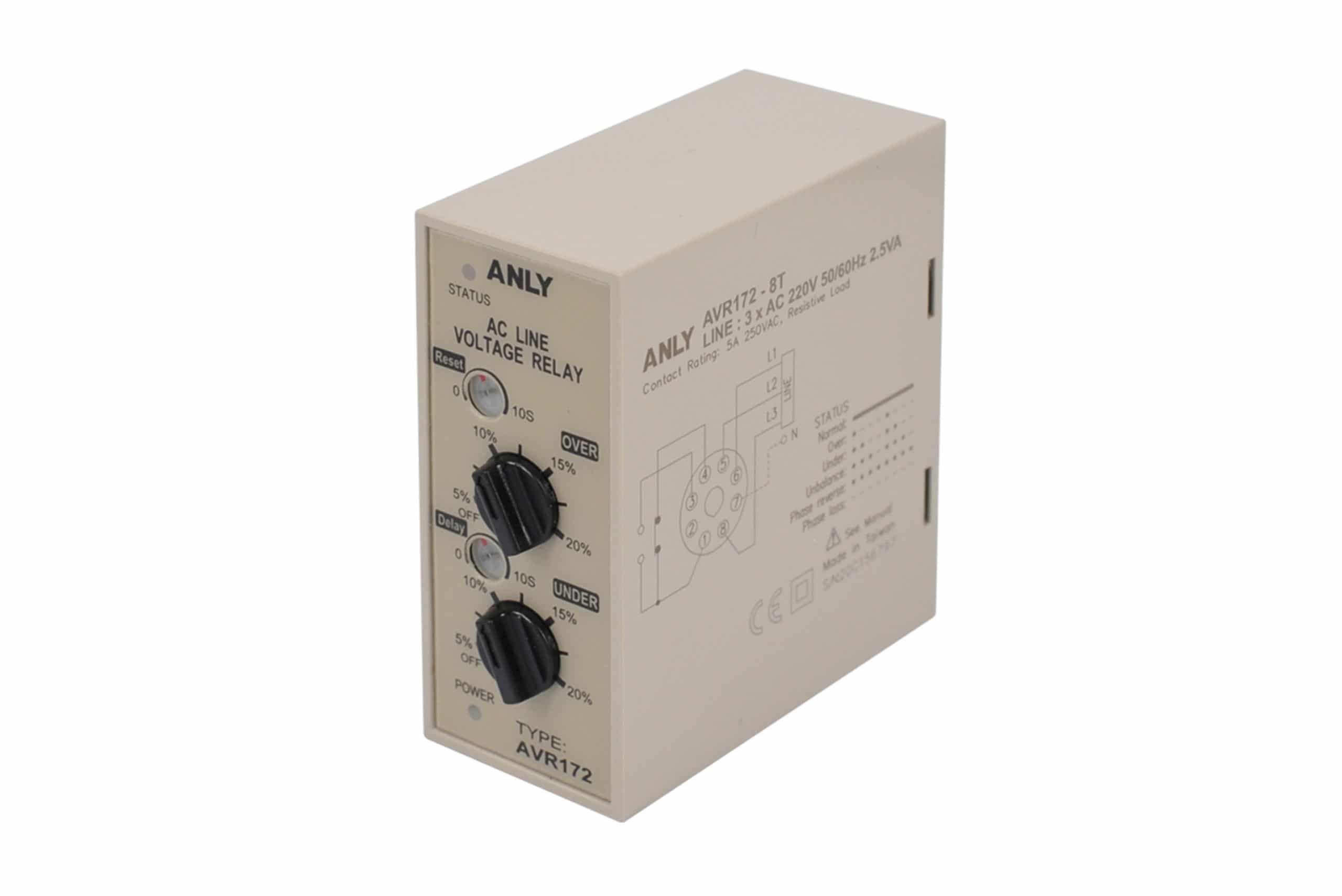

Voltage Relay 8 Pin Round Din Rail Base Mounting Model: AVR172-8T Anly

220V AC Line Voltage Relay

Make / Brand: Anly Electronics

Country of Origin: Taiwan



Download Catalogue

Description

  • Operating Voltage: 220VAC
  • Rated Frequency: 50/60Hz
  • Function: 0-10 Seconds Adjustable Tripping Delay
  • Number of Pin: 8
  • No. of Phase: 3 Phase
  • Detecting Method: Detect from Supply Voltage
  • Reset Time: 0-10Sec Adjustable
  • Contact Rating: 250VAC 5A (resistive load)
  • Power Consumption: Approx. 3VA
  • Dimensions: (D)73.3mm x (W)35mm x (H)80.5
  • Weight: 170g
