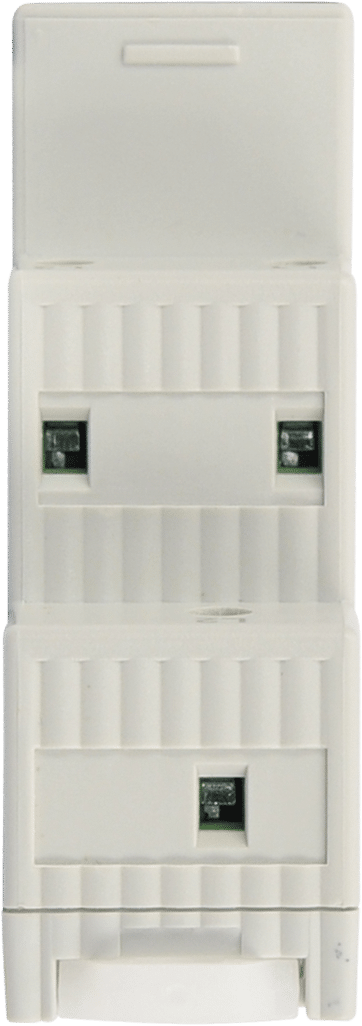

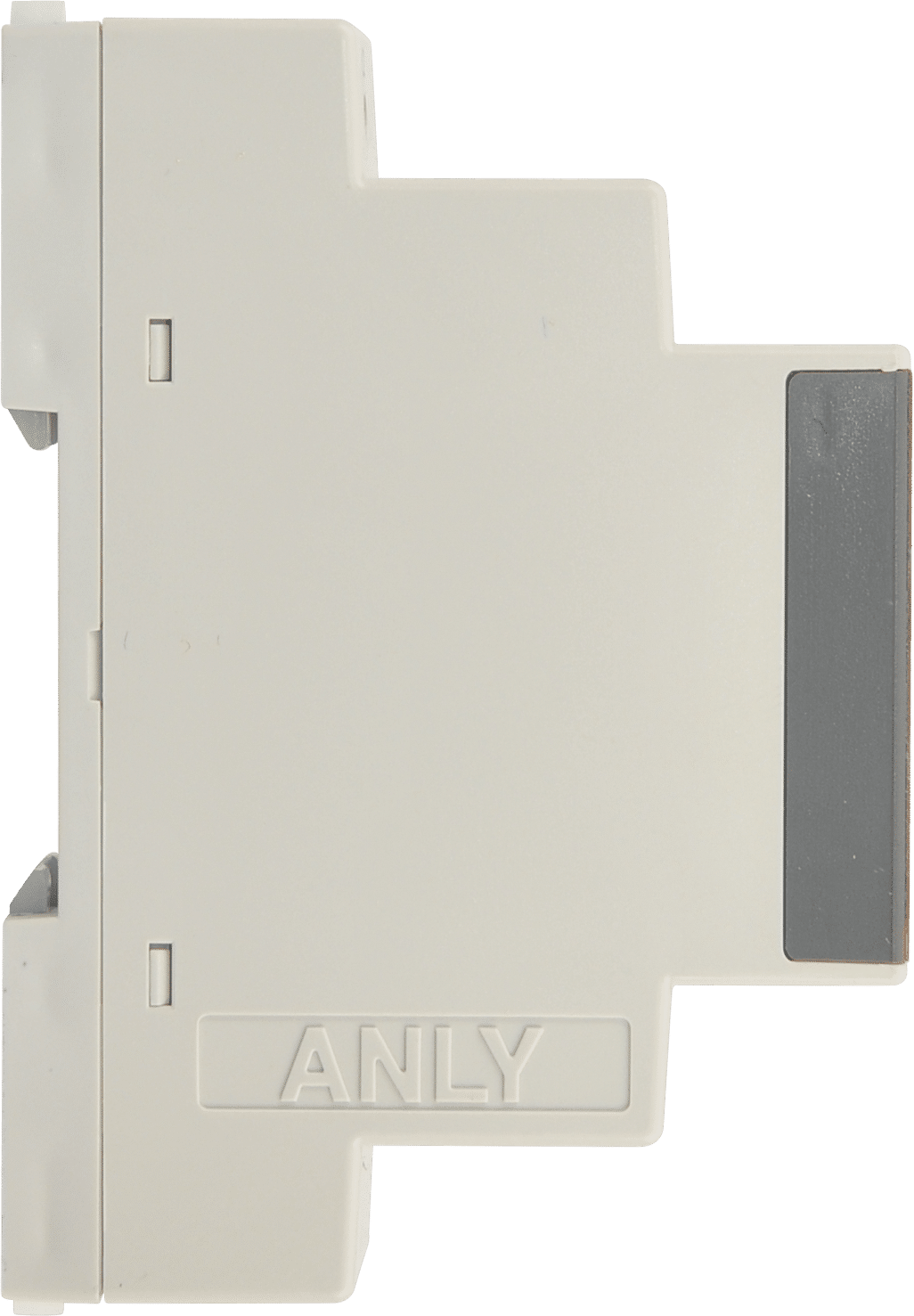

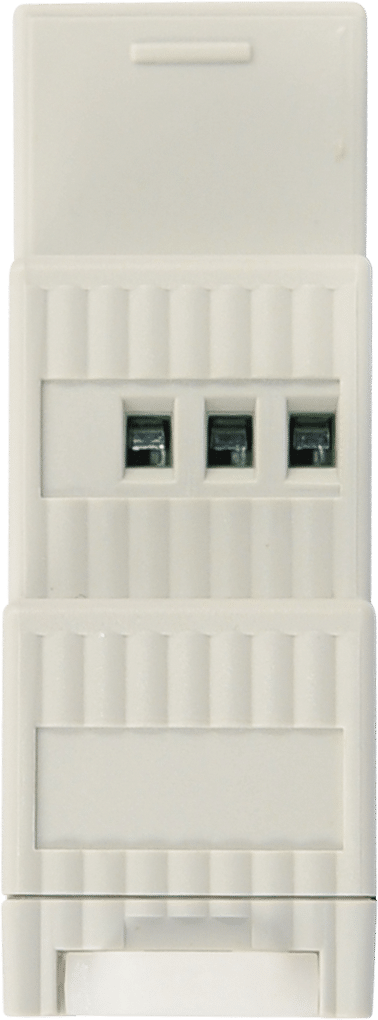

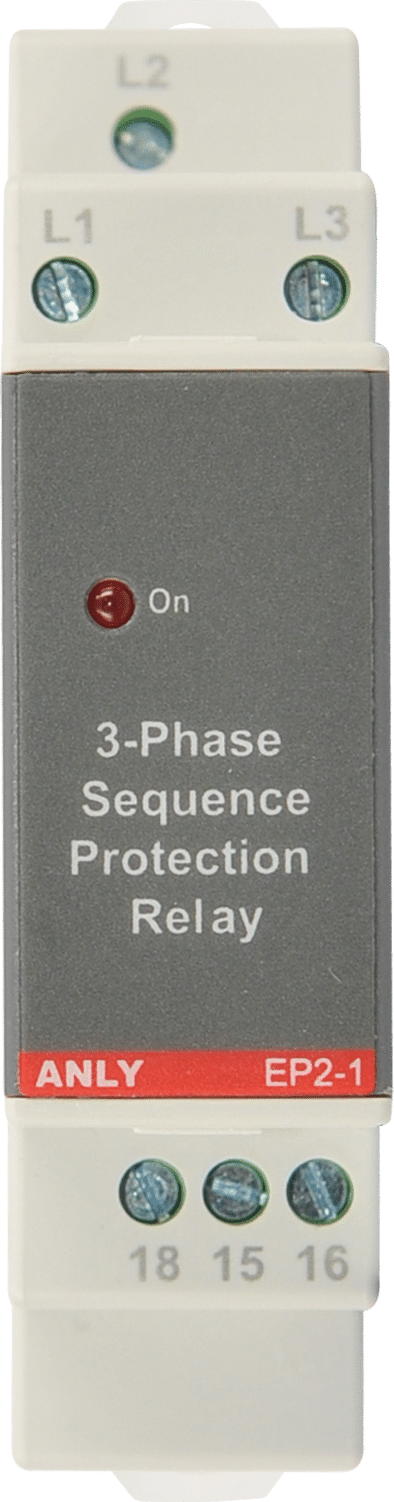

Phase Sequence Protection Relay Model: EP2-13111 Anly

3 Phase Sequence Protection Relay 220V – 440V

Make / Brand: Anly Electronics

Country of Origin: Taiwan



Download Catalogue – EP2 Series

Shop Online

Description

  • 3 Phase Sequence Protection Relay
  • Operating Voltage: AC 220V – 440V
  • Allowable Operating Voltage Range: 80-120% of rated operating voltage
  • Rated Frequency: 50/60Hz
  • Detecting Method: Detect Voltage
  • Contact Rating: 250VAC 5A Resistive Load
  • Power Consumption: Approx. 3VA (220VAC)
  • Source Type: 3 Phase
  • Function: Phase Reversal, Phase Lose, Unbalance
  • Phase – loss Detection – 3sec fixed tripping delay
  • 3-Phase voltage balance detection – 3sec fixed tripping delay
  • 1sec fixed reset delay

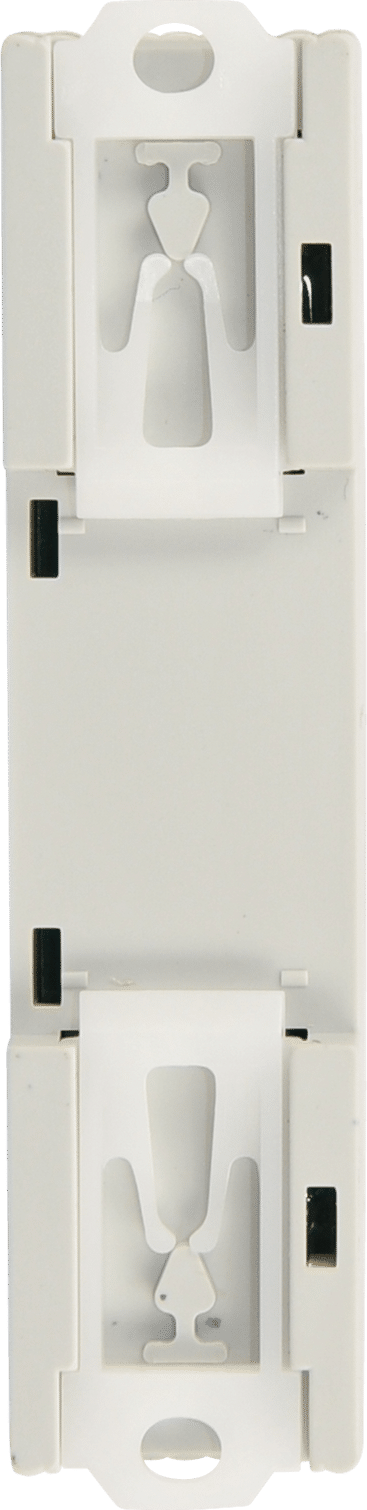

  • Install on DIN rail and no socket require
  • Dimension: (H)90.6mm x (W)22.5mm x (D)56.6mm
