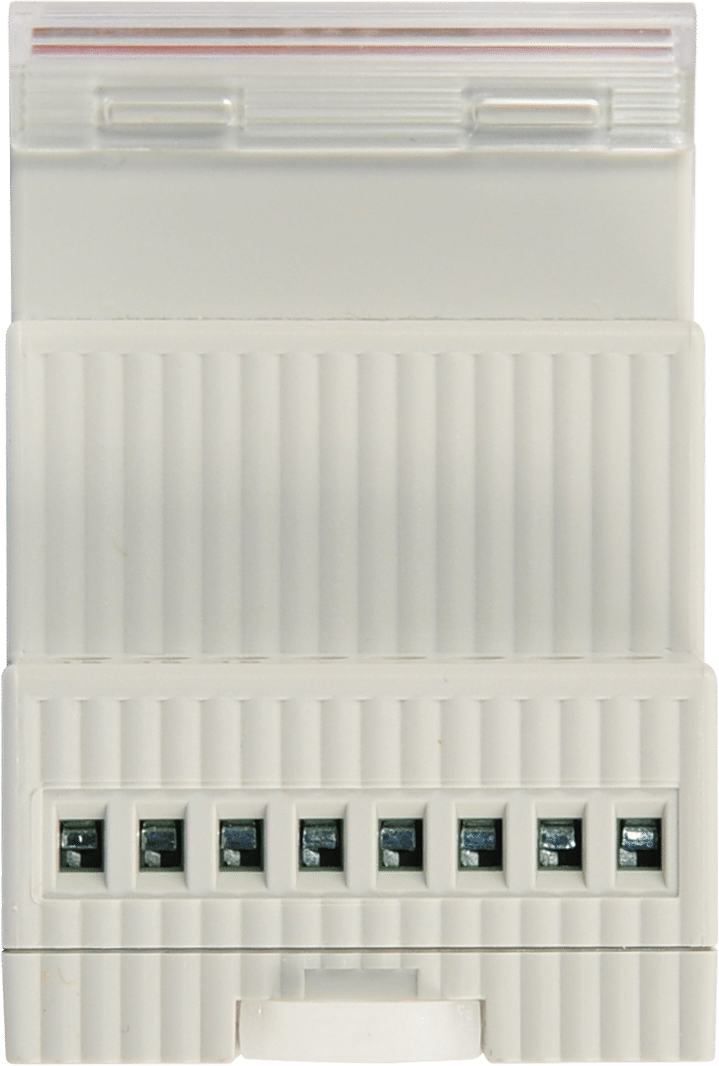

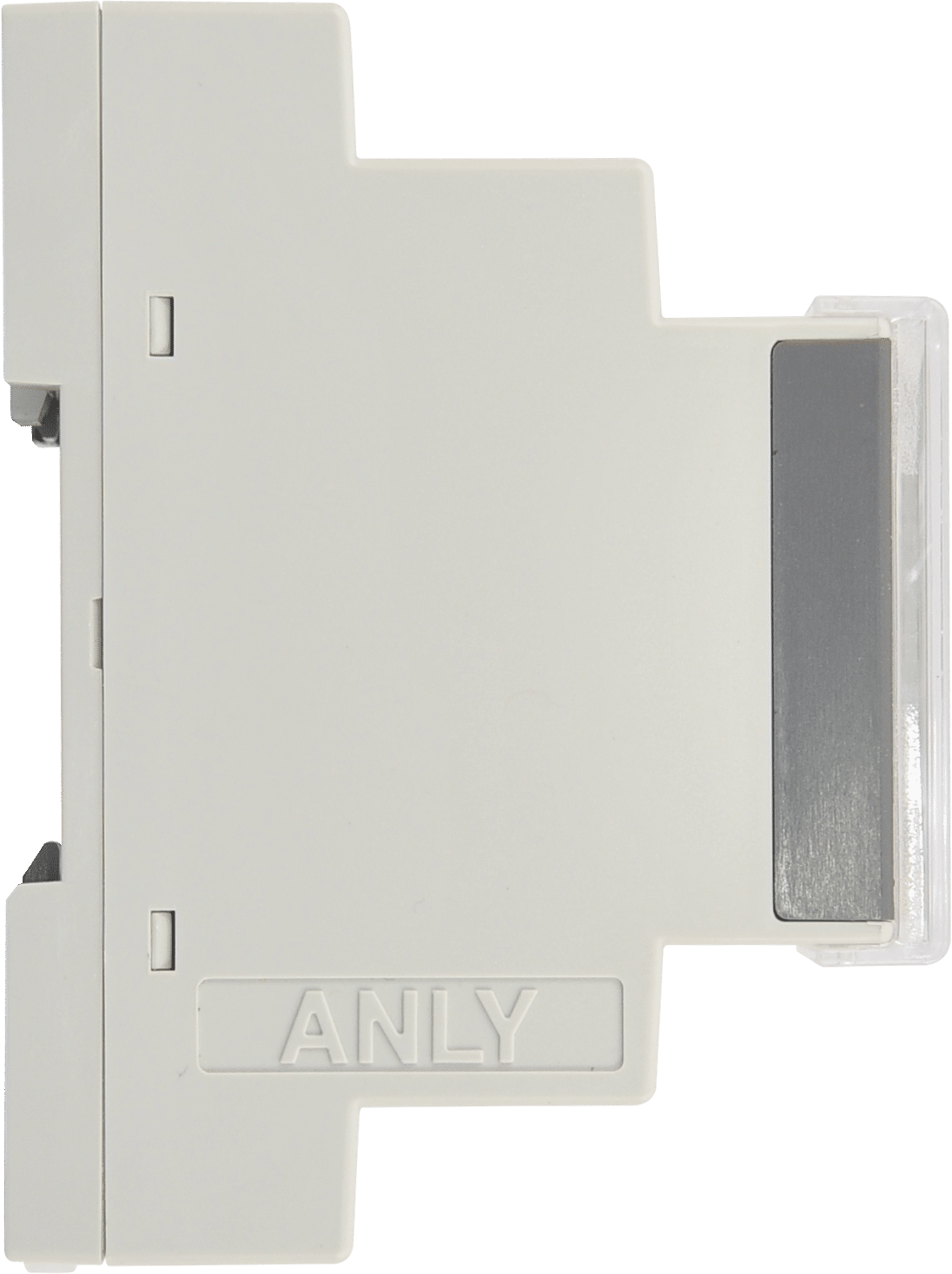

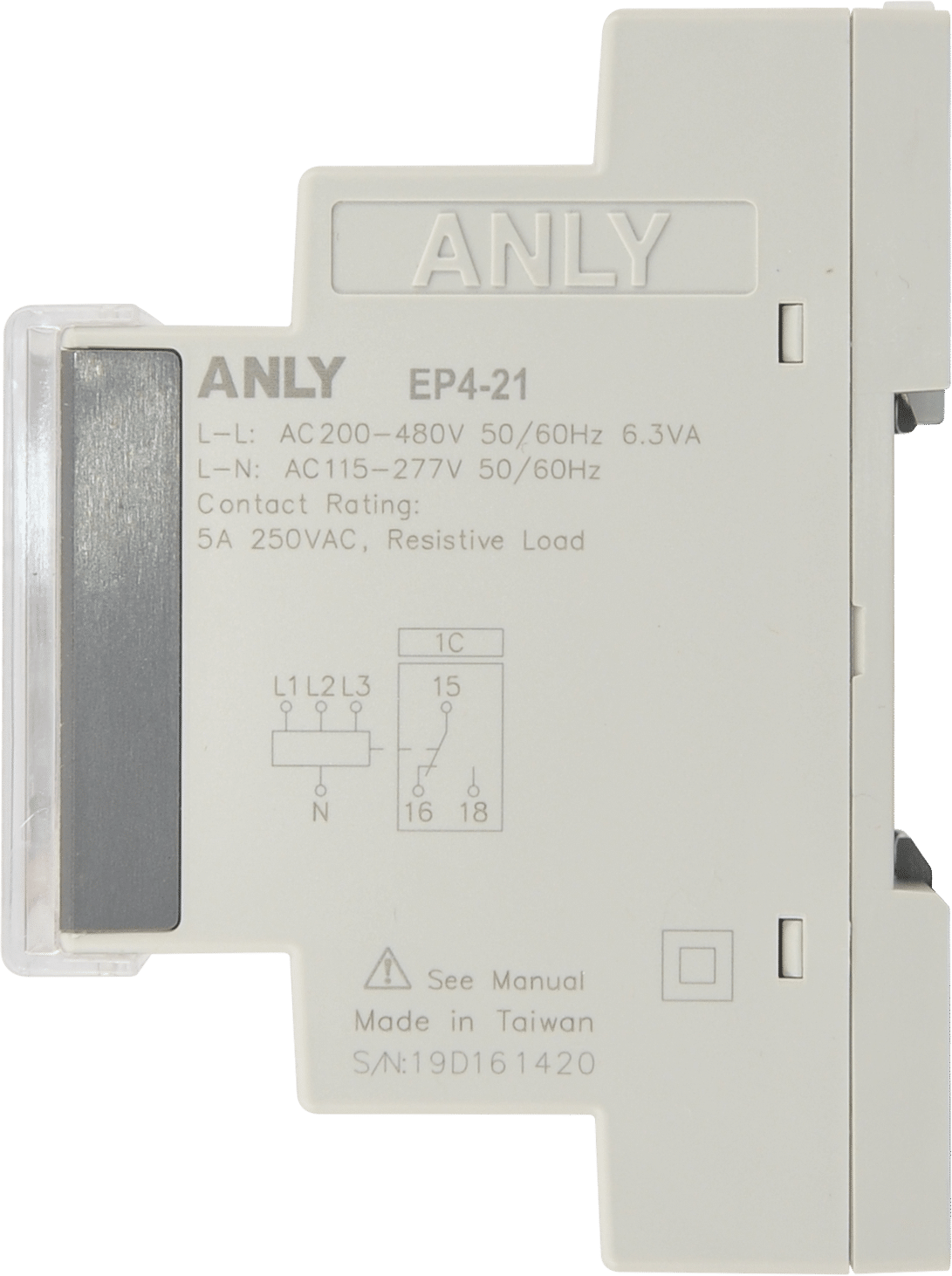

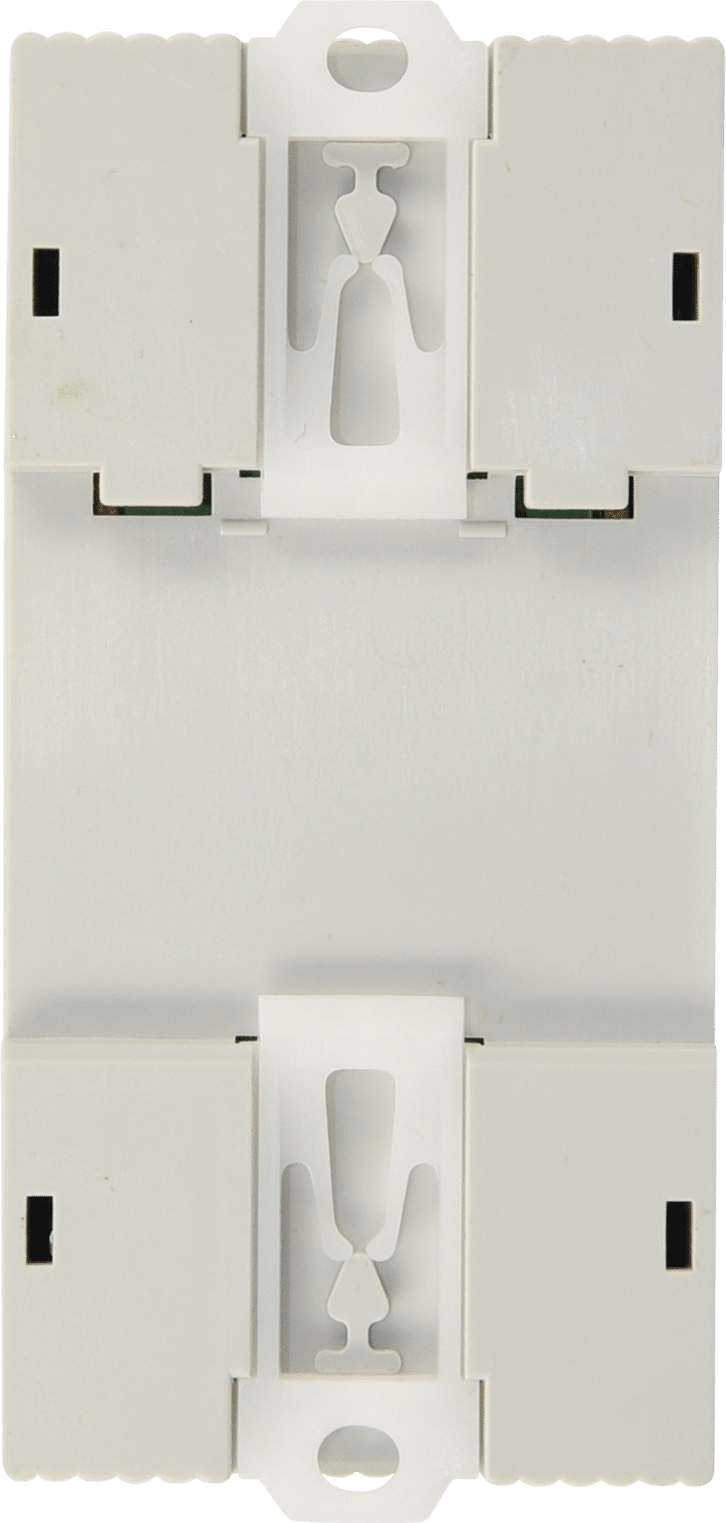

Under and Over Voltage Relay Multi Function Model: EP4-21 Anly

70-120% Multi Function Voltage Relay

Make / Brand: Anly Electronics

Country of Origin: Taiwan



Download Catalogue РEP4 Series

Download Manual – EP4 Series

Shop Online

Description

  • Functions¬† – Under Voltage (UVR), Over Voltage (OVR), Voltage Trip Delay, Voltage Unbalance, Phase Reversal, Phase Loss
  • Operating Voltage: L-L AC 200 – 480V ; L-N AC 115 – 277V
  • Allowable Operating Voltage Range: 70-120% of rated operating voltage
  • Rated Frequency: 50/60Hz
  • Detecting Method: Detect 3-phase supply voltage
  • Contact Rating: 250VAC 5A (resistive load)
  • Volts: 3P3W 200-480V
  • Volts: 3P4W 115-277V
  • Power Consumption: Approx. 2.8VA (220VA) ; Approx. 3.6VA (380VA)
  • Output Contact: 1C No-Fault
  • Auto Reset time selectable between 1 and 5 sec
  • Dimension: (H)90.6mm x (W)45mm x (D)56.6mm
  • Weight: 136g
