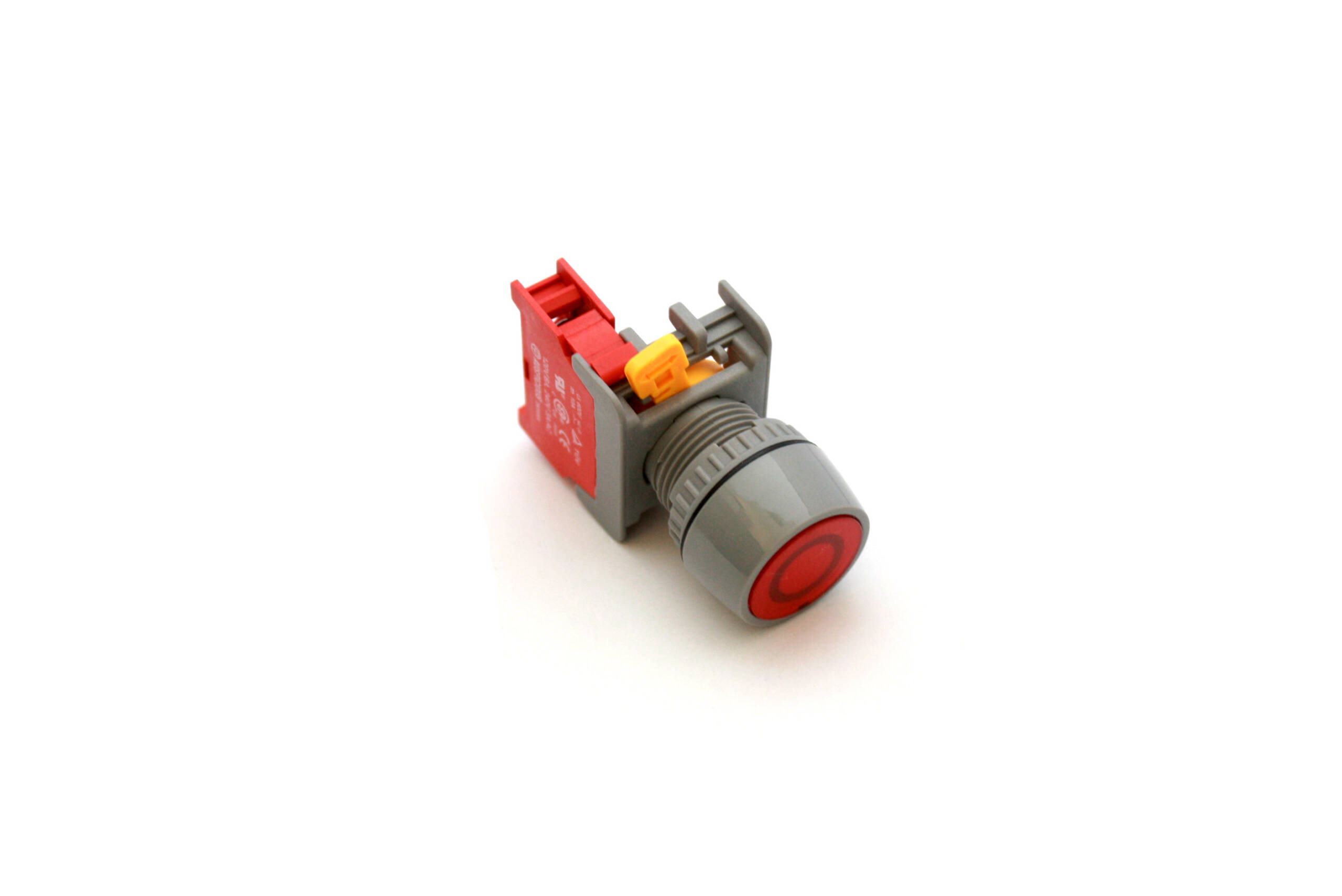

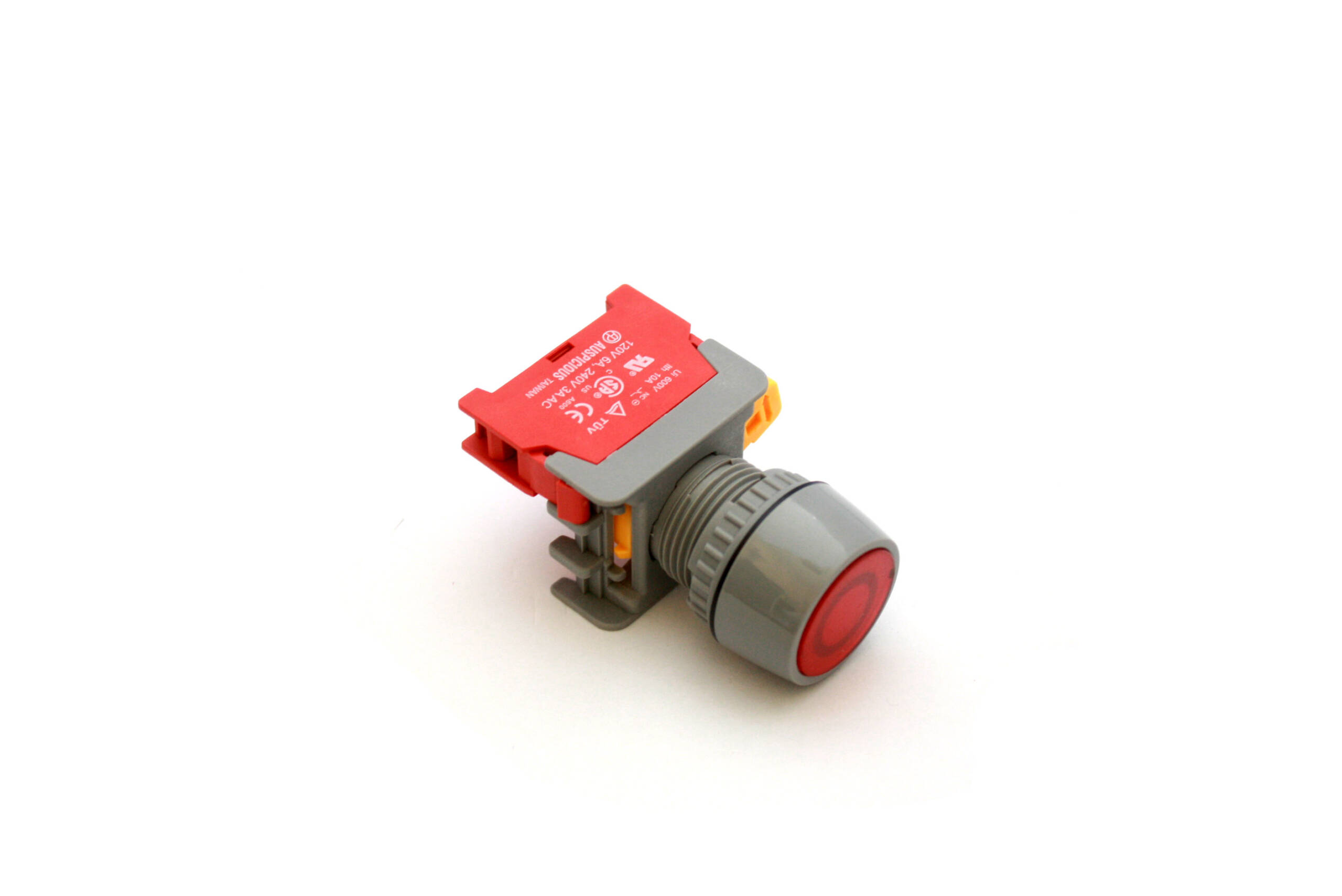

Push Button Red ‘O’ Mark Momentary IP65 Model: GBF22 Auspicious

22mm Non-Illuminated Red Button w/ O Indication – IP65 Rating

Make: Auspicious

Country of Origin: Taiwan





Description

  • Red Push Button with O Indication
  • Range of Product: GBF22 Series
  • Operator Profile: Momentary Type
  • Mounting Diameter: 22mm
  • Thermal Current 1th 10A 50/60Hz
  • Insulation Voltage Ui 600V
  • Enclosed Thermal Current 1the 10A
  • Short Circuit Current 1000A
  • AC-15 120V 6A, 240V 3A
  • IP Degree of Protection: IP65
  • Product Certification(s): TUV, UL Listed, CSA,
  • Accessories: One (1) Normally Close Contact Block
