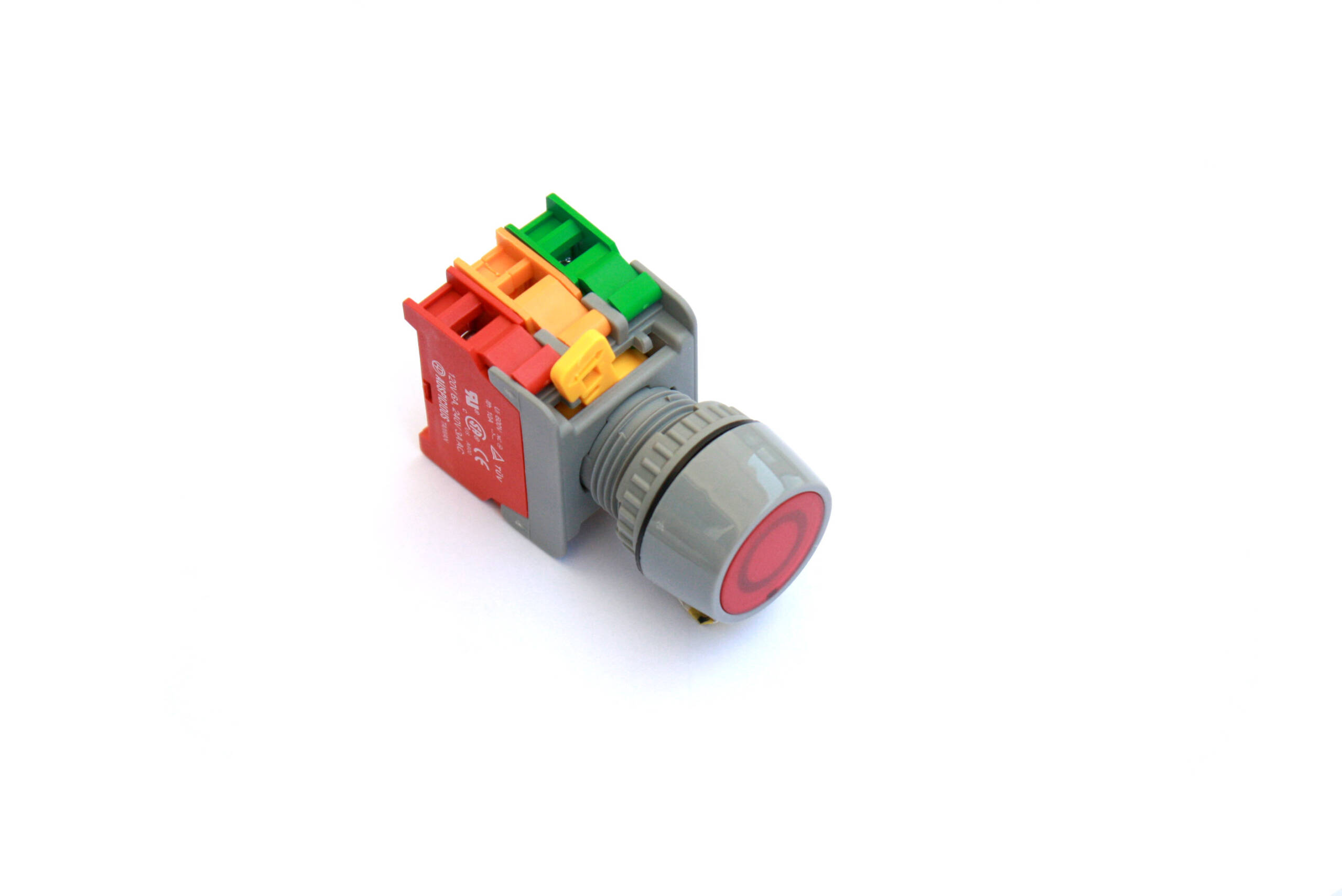

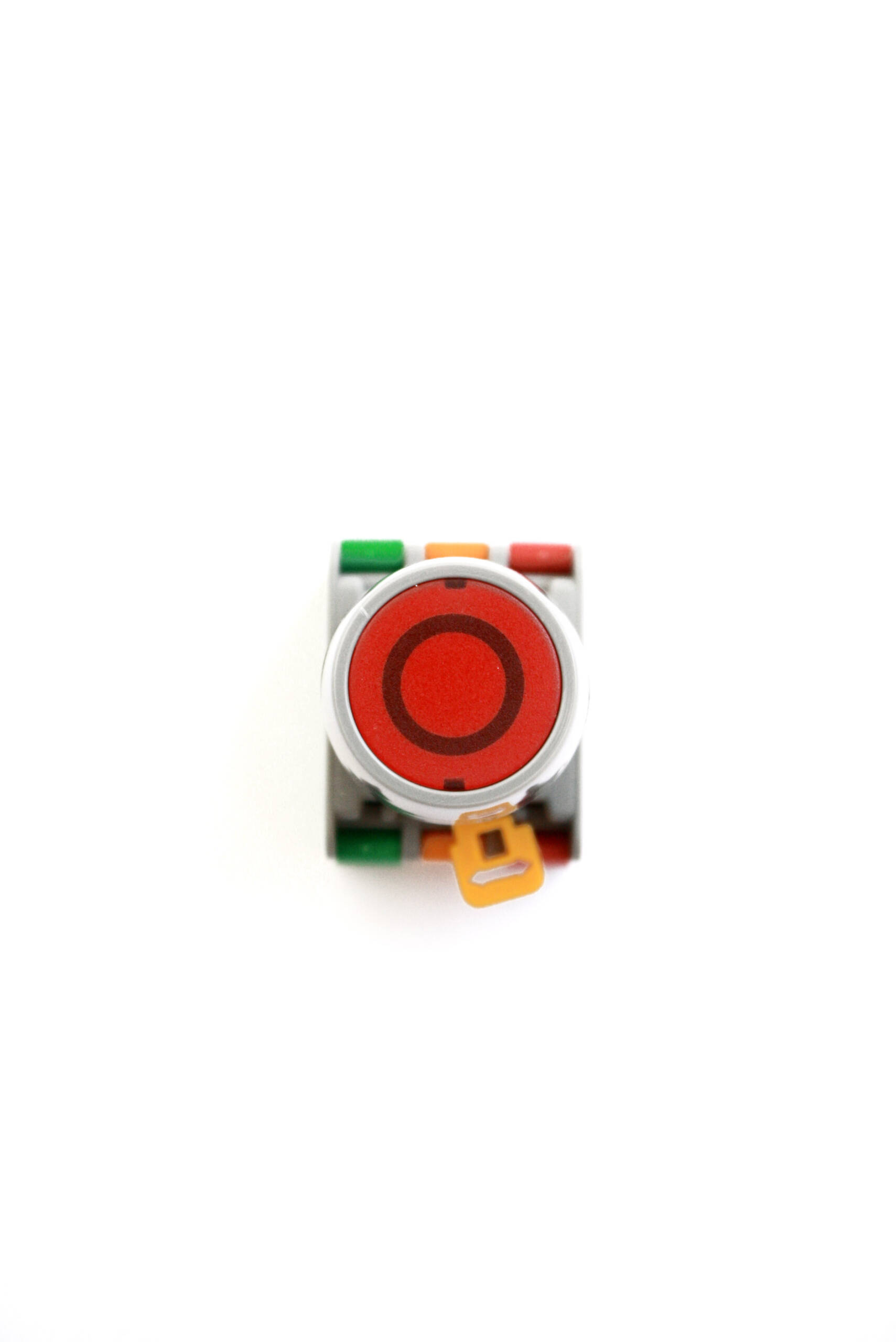

Latching Button 22mm Red Model: GPF22 Auspicious

22mm Red Illuminated Latching Type Push Button IP65 Rating

Make: Auspicious

Country of Origin: Taiwan





Description

  • Red Illuminated Push Button
  • Range of Product: GPFL22 Series
  • Operator Profile: Latching Type
  • Mounting Diameter: 22mm
  • Thermal Current 1th 10A 50/60Hz
  • Insulation Voltage Ui 600V
  • Enclosed Thermal Current 1the 10A
  • Short Circuit Current 1000A
  • AC-15 120V 6A, 240V 3A
  • Bulb Selection: 6.3V, 12V, 24V, 110V, 220V & 440V BA9’s Type
  • IP Degree of Protection: IP65
  • Product Certification(s): TUV, UL Listed, CSA,
  • Accessories: One (1) Normally Close/Open Contact Block & Lamp Holder Contact
