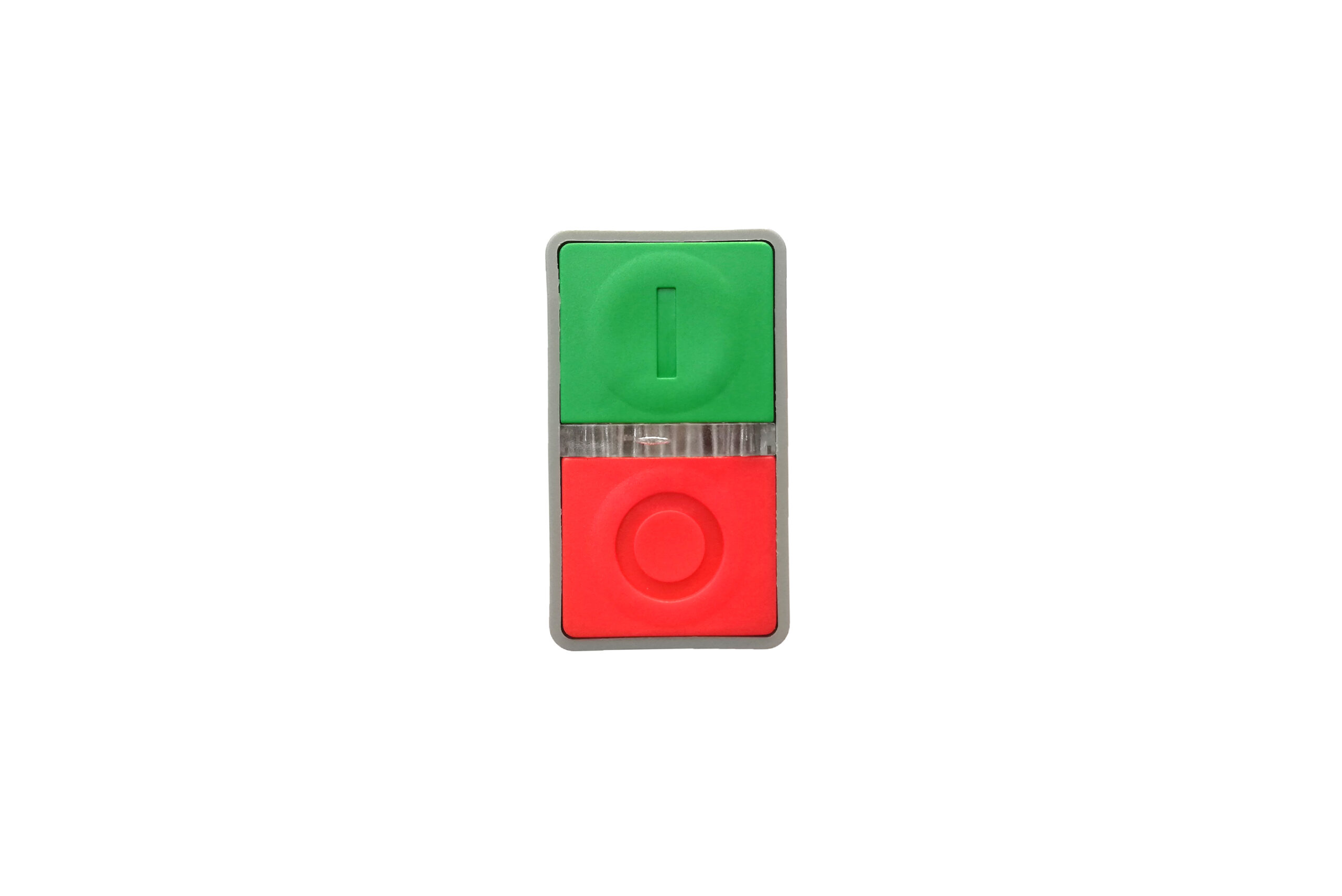

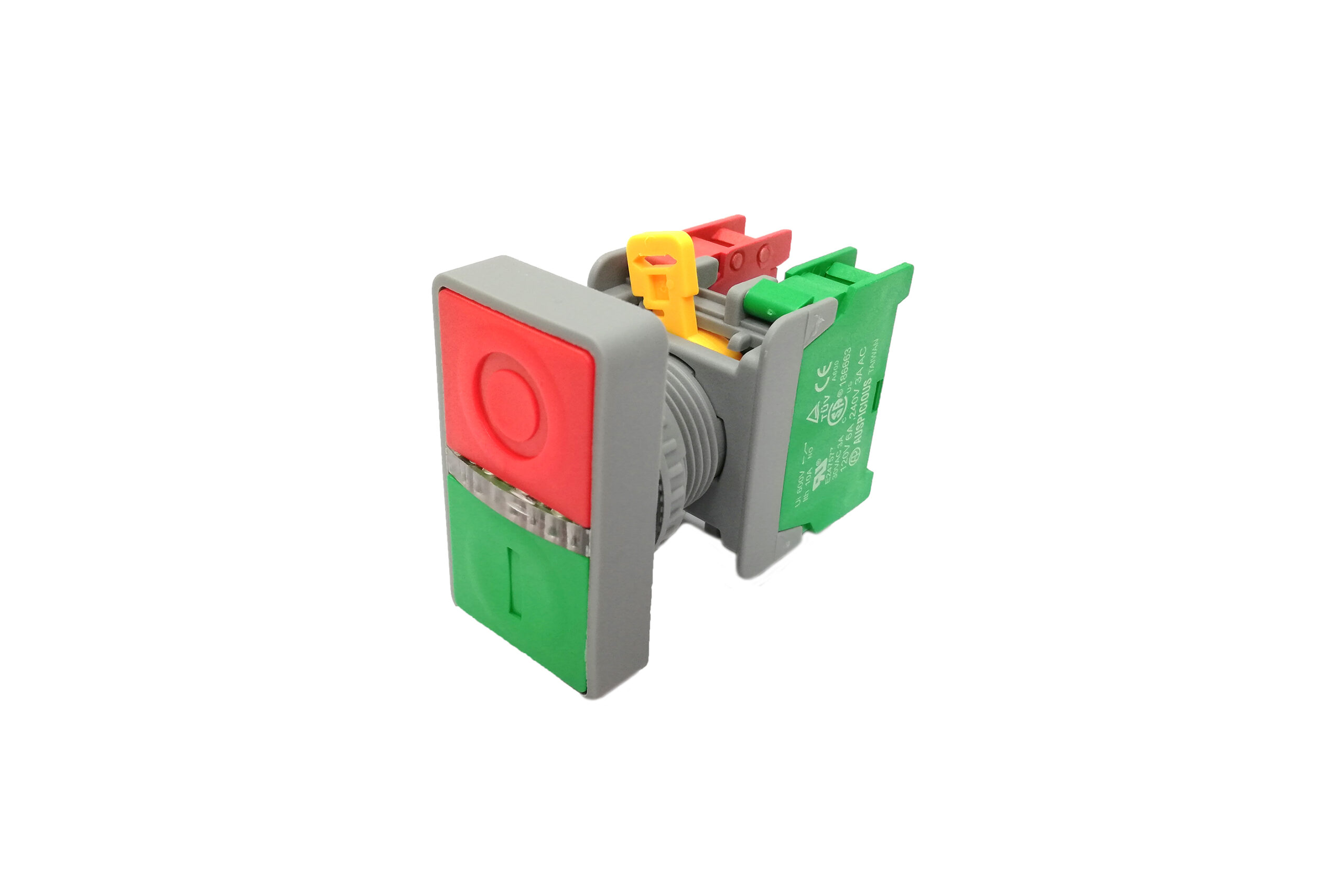

Double Push Button Green & Red IP65 Model: DPB22A Auspicious

22mm ON-OFF Double Push Button Red/Green

Make: Auspicious

Country of Origin: Taiwan





Description

  • Double Push Button
  • Range of Product: DPB22 Series
  • Operator Profile: Momentary Type
  • Mounting Diameter: 22mm
  • Thermal Current 1th 10A 50/60Hz
  • Insulation Voltage Ui 600V
  • Enclosed Thermal Current 1the 10A
  • Short Circuit Current 1000A
  • AC-15 120V 6A, 240V 3A
  • IP Degree of Protection: IP65
  • Product Certification(s): TUV, UL Listed, CSA,

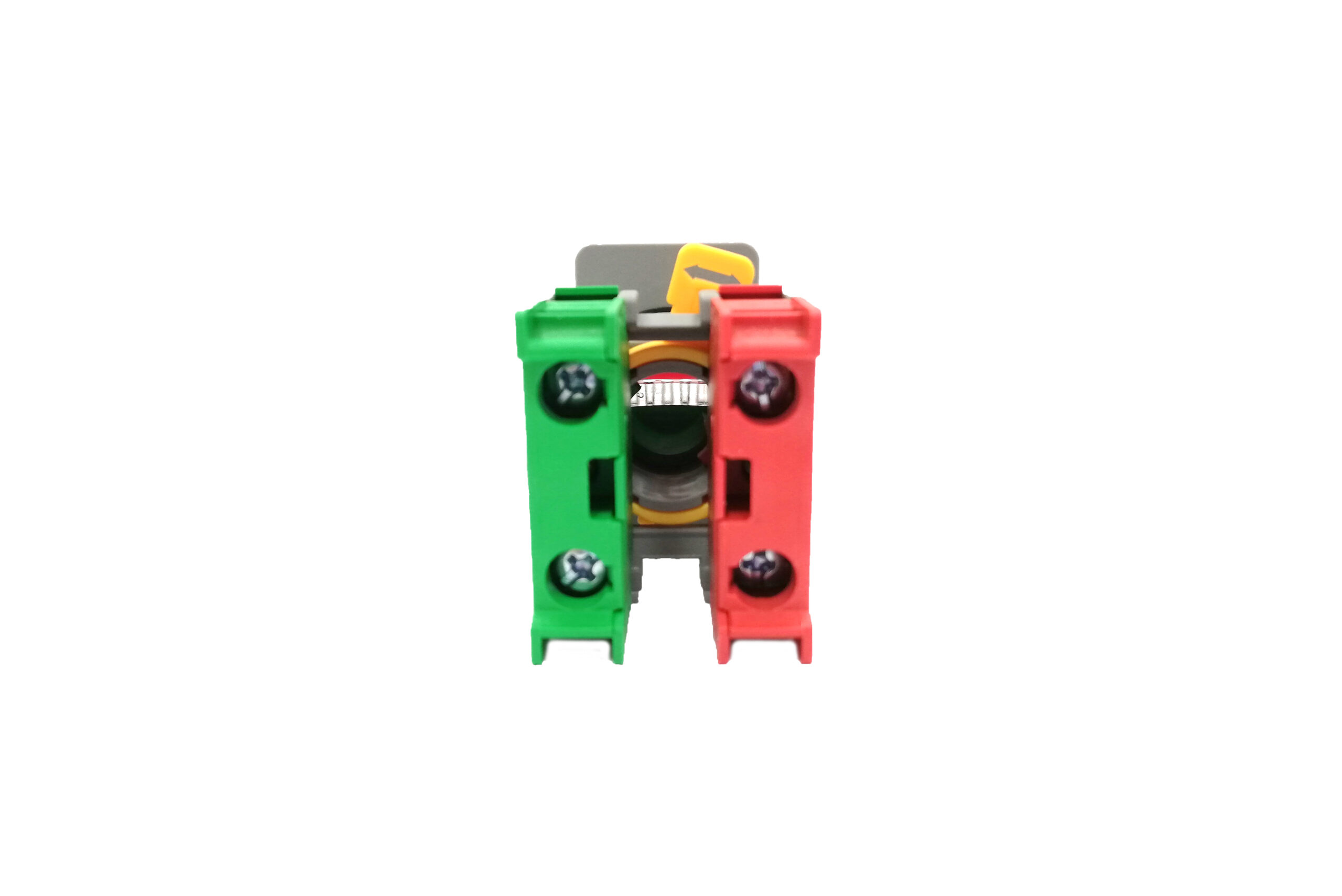

  • Accessories: One (1) Normally Open & Close Contact Block
